商品説明

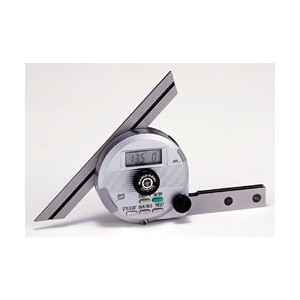

This is a compact, light-weight, and high accurate protractor with easy- to - read LCD digital display. This reduces the burden on the person making the measurement, makes the inspection process efficient, and greatly contributes to increasing the reliability.
■ Features
●Compact, lightweight, high accurate digital protractor
●The main parts are made of rust-resistant hardened stainless steel (SUS420J2)
●Display mode selection between 0° 0’ (base of 60) and 0.00° (decimal)
●Many different measurements are possible with optional accessories.
●With data output function
■Function part
■Specification
Part Number | DP-601 | DP-601ST |
Measurement range | -360°~+360° (Full circle) | |
Minimum reading | 1' or 0.01° | |
Instrument error | ±2' | |
Repeatability | 1' | |
Response speed | 3rps | |
Display unit | 0°0' (base of 60) or 0.00° (decimal) | |
Battery | Coin type lithium ion battery CR2032×1pc | |
Battery life | About 2000 hours | |
Body material | Hardened stainless steel (SUS420J2) | |
Main unit weight | 270g approx. | 1150g approx. |
Functions | Count up direction selection, preset, displayed value hold | |
Data output | Mitutoyo digimatic output *1 Connector shape: Compatible with Mitutoyo connection cable (flat type) *2 Not all Mitutoyo products are compatible. | |
Accessories | 150mm blade |
*DP-601ST is not possible to affix the height gauge holder or the acute angle attachment.
■Main dimensions
●DP-601
●DP-601ST
