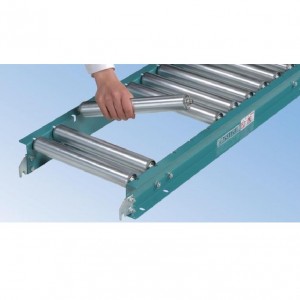

スチールスロットインローラーコンベア（中荷重）Φ42.7
参考画像

スチールスロットインローラーコンベア（中荷重）Φ42.7

商品番号：M563SS42-601010M

商品説明

■寸法図



■フレーム耐荷重
脚取付間隔(mm) 1000 1500 2000 3000 床置/m
許容荷重(kg) 1000 450 260 73 1200

ローラ φ42.7×1.4
ベアリング スチールボールベアリング
フレーム SS　[90×30×2.3


■仕様(mm)
●ストレート
品番 ローラ幅
(W)		 フレーム幅
(W1)		 ローラピッチ
(P)		 機長
(L)		 製品重量
(kg)		 ローラ1本
許容静荷重(kg)
M563SS42-150510M 150 220 50 1000 12.9 130
M563SS42-150515M 1500 19.2
M563SS42-150520M 2000 25.1
M563SS42-150530M 3000 37.2
M563SS42-150710M 77 1000 10.4
M563SS42-150715M 75 1500 15.4
M563SS42-150720M 77 2000 20.1
M563SS42-150730M 75 3000 30.4
M563SS42-151010M 100 1000 9.1
M563SS42-151015M 1500 13.7
M563SS42-151020M 2000 17.8
M563SS42-151030M 3000 26.6
M563SS42-151510M 154 1000 8.1
M563SS42-151515M 150 1500 12.5
M563SS42-151520M 154 2000 15.9
M563SS42-151530M 150 3000 23.7
M563SS42-200510M 200 270 50 1000 14.6
M563SS42-200515M 1500 21.8
M563SS42-200520M 2000 28.4
M563SS42-200530M 3000 42.2
M563SS42-200710M 77 1000 11.5
M563SS42-200715M 75 1500 17.2
M563SS42-200720M 77 2000 22.4
M563SS42-200730M 75 3000 33.8
M563SS42-201010M 100 1000 10
M563SS42-201015M 1500 15.1
M563SS42-201020M 2000 19.6
M563SS42-201030M 3000 29.2
M563SS42-201510M 154 1000 8.8
M563SS42-201515M 150 1500 13.6
M563SS42-201520M 154 2000 17.2
M563SS42-201530M 150 3000 25.6
M563SS42-300510M 300 370 50 1000 18 100
M563SS42-300515M 1500 26.9
M563SS42-300520M 2000 35.1
M563SS42-300530M 3000 52.2
M563SS42-300710M 77 1000 13.8
M563SS42-300715M 75 1500 20.8
M563SS42-300720M 77 2000 26.9
M563SS42-300730M 75 3000 40.9
M563SS42-301010M 100 1000 11.9
M563SS42-301015M 1500 17.9
M563SS42-301020M 2000 23.2
M563SS42-301030M 3000 34.5
M563SS42-301510M 154 1000 10.2
M563SS42-301515M 150 1500 15.7
M563SS42-301520M 154 2000 19.8
M563SS42-301530M 150 3000 29.4
M563SS42-400510M 400 470 50 1000 21.4 85
M563SS42-400515M 1500 32
M563SS42-400520M 2000 41.8
M563SS42-400530M 3000 62.2
M563SS42-400710M 77 1000 16.1
M563SS42-400715M 75 1500 24.4
M563SS42-400720M 77 2000 31.4
M563SS42-400730M 75 3000 47.4
M563SS42-401010M 100 1000 13.8
M563SS42-401015M 1500 20.7
M563SS42-401020M 2000 26.8
M563SS42-401030M 3000 39.8
M563SS42-401510M 154 1000 11.6
M563SS42-401515M 150 1500 17.8
M563SS42-401520M 154 2000 22.4
M563SS42-401530M 150 3000 33.2
M563SS42-500510M 500 570 50 1000 24.8 65
M563SS42-500515M 1500 37.1
M563SS42-500520M 2000 48.5
M563SS42-500530M 3000 72.2
M563SS42-500710M 77 1000 18.4
M563SS42-500715M 75 1500 28
M563SS42-500720M 77 2000 35
M563SS42-500730M 75 3000 54.2
M563SS42-501010M 100 1000 15.7
M563SS42-501015M 1500 23.5
M563SS42-501020M 2000 30.4
M563SS42-501030M 3000 45.1
M563SS42-501510M 154 1000 13
M563SS42-501515M 150 1500 19.9
M563SS42-501520M 154 2000 25
M563SS42-501530M 150 3000 37
M563SS42-600510M 600 670 50 1000 28.2 50
M563SS42-600515M 1500 42.2
M563SS42-600520M 2000 55.2
M563SS42-600530M 3000 82.2
M563SS42-600710M 77 1000 20.7
M563SS42-600715M 75 1500 31.6
M563SS42-600720M 77 2000 40.4
M563SS42-600730M 75 3000 61
M563SS42-601010M 100 1000 17.6
M563SS42-601015M 1500 26.3
M563SS42-601020M 2000 34
M563SS42-601030M 3000 50.4
M563SS42-601510M 154 1000 14.4
M563SS42-601515M 150 1500 22
M563SS42-601520M 154 2000 27.6
M563SS42-601530M 150 3000 40.8
M563SS42-700510M 700 770 50 1000 31.7 35
M563SS42-700515M 1500 47.4
M563SS42-700520M 2000 61.9
M563SS42-700530M 3000 92.2
M563SS42-700710M 77 1000 23
M563SS42-700715M 75 1500 35.3
M563SS42-700720M 77 2000 45
M563SS42-700730M 75 3000 67.9
M563SS42-701010M 100 1000 19.5
M563SS42-701015M 1500 29.1
M563SS42-701020M 2000 37.6
M563SS42-701030M 3000 55.7
M563SS42-701510M 154 1000 15.8
M563SS42-701515M 150 1500 24.2
M563SS42-701520M 154 2000 30.3
M563SS42-701530M 150 3000 44.7
M563SS42-800510M 800 870 50 1000 35.2 20
M563SS42-800515M 1500 52.6
M563SS42-800520M 2000 68.6
M563SS42-800530M 3000 102.2
M563SS42-800710M 77 1000 25.3
M563SS42-800715M 75 1500 39
M563SS42-800720M 77 2000 49.6
M563SS42-800730M 75 3000 74.8
M563SS42-801010M 100 1000 21.4
M563SS42-801015M 1500 31.9
M563SS42-801020M 2000 41.2
M563SS42-801030M 3000 61
M563SS42-801510M 154 1000 17.2
M563SS42-801515M 150 1500 26.4
M563SS42-801520M 154 2000 33
M563SS42-801530M 150 3000 48.6
