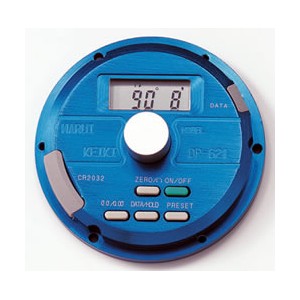

Digital Angle Sensor
商品番号：DP-621
商品説明
This is a lightweight, compact, high accurate rotation angle detector.
It does not require any wiring because it is battery driven and the digital display section is built- in. With data output function.
■Specification
| Part Number | DP-621 |
| Measurement range | -360°～ +360° (Full circle) |
| Minimum reading | 1’ or 0.01° |
| Instrument error | ±2’ |
| Repeatability | 1’ |
| Response speed | 3rps |
| Display unit | 0° 0’ (base of 60) or 0.00° (decimal) |
| Battery | Coin type lithium ion batter CR2032 x 1pc |
| Battery life | About 2000 hours |
| Main unit weight | 110g approx. |
| Functions | Count up direction selection, preset, displayed value hold |
| Data output*1/2 | Mitutoyo digimatic output |
| Accessories | Monitor battery |
*1 Connector shape: Compatible with Mitutoyo connection cable (flat type)
*2 Not all Mitutoyo products are compatible.
■dimensions
